Product Range

Refractory bed materials for AFBC and CFBC boiler duty.

The bed material page now presents the technical specification in a cleaner format, with visual cues for AFBC and CFBC boiler usage instead of a rigid legacy layout.

Chemical properties covering alumina, silica, alkalis and iron limits.

Particle size guidance for AFBC and CFBC boiler applications.

Bulk density and physical property data retained from the original page.

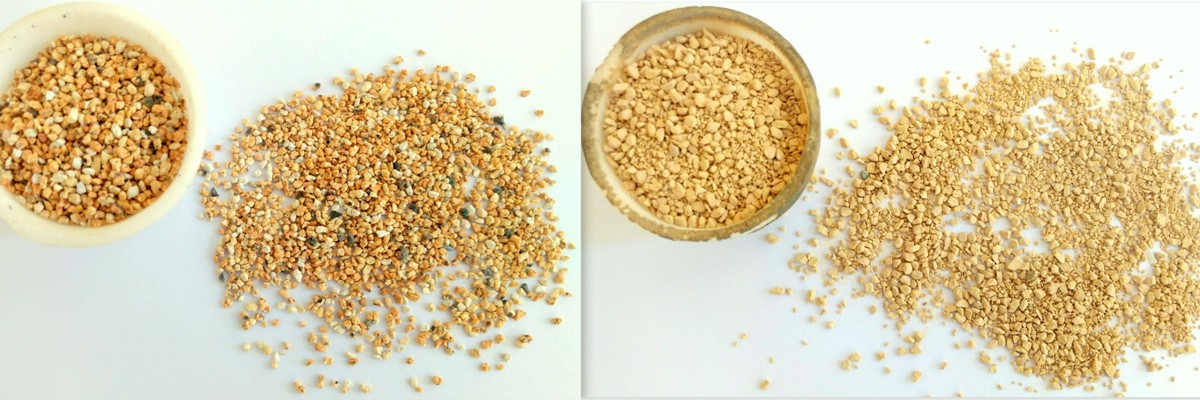

$Refractory bed material$

$AFBC refractory bed material$

AFBC range

Particle size ranges published for fluidized bed boiler requirements.

Consistent sizing

Presented with density and temperature data for easier buyer comparison.

$CFBC refractory bed material$

CFBC range

Separate sizing and density notes retained for CFBC boiler conditions.

Parameter	Specification
Chemical properties
Alumina as Al2O3	28-32% min.
Silica as SiO2	60-65% max.
Alkalis (Na2O + K2O)	Less than 1%
Iron as Fe2O3	Less than 2%
Physical properties
Shape	Sub-angular to rounded
Hardness	6.8 to 7.2 MOHS
Nature	Dry
Initial deformation temperature (IDT)	Greater than 1300 deg C
For AFBC boilers
Particle size	0.85 to 2.36 mm, 0.85 to 2.00 mm
Bulk density	1050 to 1100 kg/m3
For CFBC boilers
Particle size	0.15 to 0.85 mm, 0.25 to 0.50 mm
Bulk density	1100 to 1150 kg/m3

Need bed material guidance for a specific boiler setup?

Share the boiler type, preferred particle size range and operating requirement so the enquiry can be routed correctly.

Send an enquiry Call now
